Finned Air Heating Tube: Enhancing Heat Transfer Efficiency

I. Introduction

In the intricate world of industrial and commercial processes, efficient heat transfer is not merely a desirable trait—it is a critical determinant of operational success, energy consumption, and overall system performance. From the warmth of our homes to the complex machinery of manufacturing plants, the ability to effectively move thermal energy from one medium to another underpins countless applications. At the forefront of this endeavor are finned air heating tubes, ingenious devices specifically engineered to dramatically enhance the rate of heat exchange between a hot fluid (inside the tube) and cooler air (outside).

Finned air heating tubes are essentially heat exchangers designed with extended surfaces, known as fins, attached to their exterior. These fins serve a singular, yet profoundly impactful, purpose: to significantly increase the surface area available for heat transfer to the surrounding air. By doing so, they overcome the inherent limitations of plain tubes, which often struggle to efficiently transfer heat to gases like air due to their low thermal conductivity. The primary objective of these tubes is to improve the efficiency of heating processes, reduce equipment size, and ultimately lower operational costs. This article will delve into the fundamental principles, design intricacies, diverse applications, and future innovations surrounding finned air heating tubes, providing a comprehensive understanding of their vital role in modern thermal systems.

II. Basic Principles of Heat Transfer

To appreciate the efficacy of finned air heating tubes, it's essential to grasp the fundamental modes of heat transfer: conduction, convection, and radiation.

• Conduction is the transfer of heat through direct contact, where thermal energy passes from more energetic particles to less energetic ones within a substance or between substances in direct contact. In a finned tube, heat conducts from the hot fluid through the tube wall and into the base of the fins.
• Convection is the transfer of heat through the movement of fluids (liquids or gases). This is the dominant mode of heat transfer from the fin surface to the surrounding air. As the air near the hot fin surface heats up, it becomes less dense and rises, allowing cooler, denser air to take its place, creating a continuous flow that carries heat away.
• Radiation is the transfer of heat through electromagnetic waves. While present, its contribution to heat transfer in typical finned air heating tube applications is often less significant compared to conduction and convection, especially at lower operating temperatures.

The core principle behind finned tubes is the role of surface area in heat transfer. Heat transfer rate is directly proportional to the surface area available for exchange. Air, being a poor conductor of heat, requires a large surface area to efficiently absorb thermal energy. Fins provide this crucial extended surface, effectively multiplying the area over which convective heat transfer can occur. This augmentation dramatically enhances the overall heat transfer coefficient between the tube and the air, making the process far more efficient than with a bare tube.

III. Anatomy and Design of Finned Air Heating Tubes

The design and material selection for finned air heating tubes are critical for their performance and longevity.

A. Core Tube Material

The choice of core tube material depends heavily on the operating conditions, including temperature, pressure, and the nature of the internal fluid.

B. Fin Material

Fin material is selected primarily for its thermal conductivity and cost.

C. Fin Types and Configurations

The geometry of the fins significantly impacts heat transfer performance and manufacturing cost.

D. Fin Attachment Methods

The method of attaching the fin to the tube is crucial for maintaining good thermal contact and preventing degradation over time. Common methods include tension winding, brazing, welding (resistance, laser, TIG), mechanical embedding, and extrusion.

E. Tube Configurations

Finned tubes can be arranged in various configurations to suit specific application requirements and space constraints.

• Straight: Simple, easy to clean.

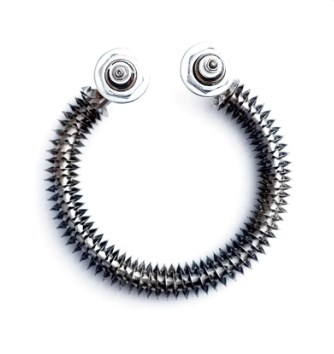

• U-bend: Compact design, often used in shell-and-tube heat exchangers.

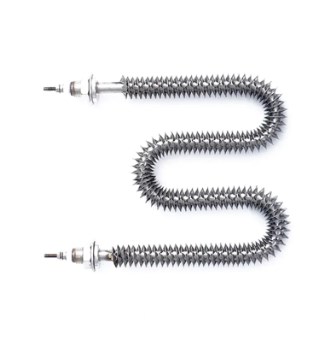

• Serpentine Coils: Multiple U-bends creating a continuous flow path, maximizing heat transfer in a confined space.

IV. Working Mechanism

The operational principle of a finned air heating tube is a systematic chain of heat transfer events.

1. Heat Generation: Heat is introduced into the core tube. This can be achieved through various means:
   • Electric Resistance: Electric heating elements embedded within the tube generate heat directly.
   • Steam: High-temperature steam condenses inside the tube, releasing latent heat.
   • Hot Fluid: Hot water, thermal oil, or other process fluids flow through the tube, transferring their sensible heat.
2. Conduction to Fins: The heat generated or carried by the internal medium conducts through the wall of the core tube and then into the base of the attached fins. The quality of the fin-to-tube bond is paramount here, as any air gaps or poor contact will significantly impede heat flow.
3. Convection to Air: As the fins heat up, they transfer thermal energy to the cooler air flowing over their surfaces. This is primarily through forced convection, where fans or blowers move air across the finned surfaces, or natural convection, where density differences drive air movement. The extended surface area provided by the fins dramatically increases the contact area between the hot metal and the air, facilitating a much higher rate of heat transfer than a bare tube could achieve.

Factors Affecting Heat Transfer Efficiency

Several parameters directly influence the efficiency of this process:

V. Advantages of Finned Air Heating Tubes

The widespread adoption of finned air heating tubes is a testament to their numerous advantages:

• Enhanced Heat Transfer Efficiency: This is their primary benefit. By significantly increasing the surface area, they facilitate much higher heat transfer rates compared to plain tubes, especially when heating gases.
• Compact Design / Space Saving: Due to their superior heat transfer capabilities, finned tubes can achieve the same heating duty as a much larger plain tube coil. This leads to more compact heat exchanger designs, saving valuable space and reducing overall equipment footprint.
• Energy Efficiency: Improved heat transfer means less energy is wasted. Systems employing finned tubes can achieve desired temperatures with lower energy input or in less time, leading to significant operational cost savings.
• Versatility in Applications: Available in a wide range of materials, fin types, and configurations, they can be customized for diverse industries and operating conditions, from low-temperature HVAC to high-temperature industrial processes.
• Durability and Longevity: When properly designed and constructed with appropriate materials for the operating environment, finned tubes are robust and can offer a long service life, resisting corrosion and mechanical stress.
• Cost-Effectiveness: While the initial cost might be slightly higher than plain tubes, the improved performance, energy savings, and reduced equipment size often lead to a lower total cost of ownership over the lifespan of the system.

VI. Applications

Finned air heating tubes are indispensable components across a vast array of industries and applications:

• HVAC Systems: They are core components in air handling units (AHUs), duct heaters, and comfort heating systems, efficiently warming air for commercial buildings, residential spaces, and industrial facilities.
• Industrial Drying Processes: Critical for applications requiring precise temperature control and efficient moisture removal, such as drying food products, timber, textiles, paper, and various chemicals.
• Process Heating: Used extensively in industrial ovens, furnaces, kilns, and other process equipment where air needs to be heated to specific temperatures for manufacturing or treatment.
• Heat Recovery Systems: Employed in economizers and air preheaters to recover waste heat from exhaust gases, improving overall system efficiency and reducing fuel consumption.
• Power Generation: Used in preheaters to warm combustion air, enhancing boiler efficiency in power plants.
• Commercial and Residential Heating: Found in unit heaters, baseboard heaters, and other space heating solutions.
• Petrochemical and Oil & Gas Industries: Utilized in various heating and cooling processes, including reboilers, condensers, and air coolers, where robust and efficient heat exchange is required.

VII. Selection Considerations

Choosing the right finned air heating tube for a specific application requires careful consideration of several factors:

• Operating Temperature and Pressure: These dictate the necessary material strength and temperature limits for both the core tube and the fins.
• Fluid Properties: The nature of the internal fluid (e.g., steam, hot water, thermal oil) and the external fluid (air velocity, presence of contaminants, corrosive elements) will influence material selection and fin type.
• Material Compatibility: Ensuring that the tube and fin materials are compatible with both internal and external environments to prevent corrosion, erosion, or degradation.
• Space Constraints: The available physical space will influence the choice of tube configuration (straight, U-bend, serpentine) and overall heat exchanger design.
• Cost vs. Performance: Balancing the initial investment cost with the desired heat transfer performance, energy savings, and expected lifespan.
• Maintenance and Cleaning Requirements: Considering the ease of cleaning and maintenance, especially in applications prone to fouling. Some fin types are more resistant to dust accumulation or easier to clean than others.
• Regulatory Standards and Certifications: Adhering to relevant industry standards, codes (e.g., ASME, TEMA), and safety certifications.

VIII. Maintenance and Troubleshooting

Proper maintenance is crucial for ensuring the long-term efficiency and reliability of finned air heating tubes.

Common Issues:

• Fouling: Accumulation of dust, lint, or other particulate matter on the fin surfaces, which acts as an insulating layer and reduces heat transfer efficiency.
• Corrosion: Degradation of tube or fin material due to exposure to corrosive substances in the air or internal fluid.
• Fin Damage: Bending, crushing, or detachment of fins due to mechanical impact, vibration, or thermal stress, leading to reduced surface area.
• Leaks: In the core tube, leading to loss of heating medium.

Cleaning Methods:

• Compressed Air/Water Jet: For light dust and debris.
• Brushing/Vacuuming: For more stubborn deposits.
• Chemical Cleaning: For hard scale or sticky residues, requiring specialized solutions and procedures.
• Steam Cleaning: Effective for certain types of fouling.

Inspection and Repair:

Regular visual inspections for fin damage, corrosion, and signs of leaks. Minor fin damage can sometimes be repaired by straightening. Major damage or leaks may necessitate tube replacement.

Extending Lifespan:

Regular cleaning, proper material selection for the application, maintaining optimal operating conditions (temperature, pressure, flow rates), and addressing issues promptly can significantly extend the operational life of finned air heating tubes.

IX. Future Trends and Innovations

The field of heat transfer technology is continuously evolving, and finned air heating tubes are no exception. Future trends and innovations are focused on enhancing performance, sustainability, and smart integration.

• Advanced Materials: Research into new materials, including composites, graphene-enhanced coatings, and advanced alloys, aims to improve thermal conductivity, corrosion resistance, and high-temperature performance. Nano-coatings could also offer anti-fouling properties.
• Optimized Fin Geometries: Computational Fluid Dynamics (CFD) and advanced simulation tools are being used to design novel fin geometries that maximize heat transfer while minimizing pressure drop and material usage. This includes wavy fins, louvered fins, and other complex structures.
• Smart Heating Systems: Integration with IoT (Internet of Things) sensors and control systems will enable real-time monitoring of performance, predictive maintenance, and optimized operation based on environmental conditions and demand.
• Energy Recovery and Sustainability Focus: Increasing emphasis on recovering waste heat from industrial processes and integrating finned tubes into more sophisticated energy recovery systems to reduce overall energy consumption and environmental impact. This includes their role in carbon capture and storage technologies.

X. Conclusion

Finned air heating tubes stand as a testament to intelligent engineering in the realm of heat transfer. By ingeniously extending the heat exchange surface, they have revolutionized the efficiency with which thermal energy is transferred to air, making countless industrial, commercial, and residential applications viable and economically sound. Their ability to deliver enhanced heat transfer in a compact, energy-efficient package has cemented their role as indispensable components in HVAC systems, drying processes, power generation, and beyond.

As industries continue to strive for greater efficiency, reduced environmental impact, and smarter operational control, the evolution of finned air heating tubes will undoubtedly continue. With ongoing advancements in materials science, design optimization, and smart technology integration, these unassuming yet powerful devices will remain at the heart of effective thermal management, ensuring that heat is transferred precisely where and when it's needed, with maximum efficiency and minimal waste. Their enduring importance underscores the fundamental principle that sometimes, the simplest modifications can yield the most profound improvements in engineering.
