In industrial scenarios such as chemical reactors, oil storage tanks, and food processing tanks, a stable and efficient heating system is the core guarantee of the production process. As a heating device that directly contacts the medium, the immersion flange heater has become the "main force" in the field of modern industrial heating with its advantages of high heat conversion efficiency, flexible installation, and precise temperature control. Whether it is low-temperature preheating or high-temperature heating, this equipment can directly transfer electrical energy or thermal energy to the medium through a unique structural design, greatly reducing energy loss and helping enterprises achieve energy saving and efficiency improvement.
Deciphering structural design: How does flange connection achieve seamless heating?

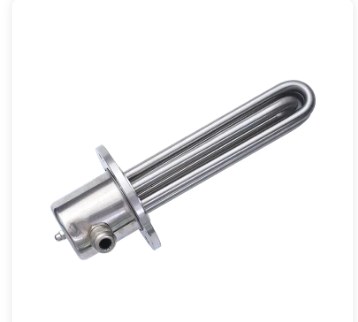

The core competitiveness of the immersion flange heater first comes from its ingenious structural design. The equipment mainly consists of three parts: heating element, flange and junction box. The heating element is mostly made of nickel-chromium alloy or copper electric heating tube, which has the characteristics of high temperature resistance and corrosion resistance. The flange is used as a connection carrier, which is sealed and connected to the container opening by welding or threading to ensure that the heating element is completely immersed in the medium. The junction box is responsible for electrical connection, with built-in high-temperature resistant cables and insulation materials to ensure the safe operation of the equipment.
The key advantage of this immersion design is that the heat loss is extremely small. Traditional external clamp-type heating equipment needs to transfer heat through the container wall, and the heat loss rate is usually more than 20%, while the heat conversion efficiency of the immersed flange heater can reach more than 90%. Taking a 500L reactor as an example, it only takes 30 minutes to heat the medium from 20℃ to 100℃ using a 15kW immersed flange heater, while the external heating equipment under the same conditions takes more than 45 minutes. The specifications of the flange can be customized according to the container diameter (common sizes range from DN50 to DN300), and can be adapted to containers of different pressure levels (can withstand up to 10MPa high pressure), meeting the stringent requirements of high-pressure scenes such as chemical and petroleum.
Adapt to multiple scenes: all-round performance from corrosive media to high-temperature environments
The properties of media in industrial production vary greatly, from highly corrosive acid and alkali solutions to highly viscous grease substances to water solutions that are prone to scaling, which places extremely high demands on the adaptability of heating equipment. The immersion flange heater achieves comprehensive coverage of complex working conditions through material customization and structural optimization.
In the chemical industry, for highly corrosive media such as hydrochloric acid and sulfuric acid, the heating element can be made of titanium alloy or Hastelloy, and the flange is matched with a PTFE sealing gasket to ensure that the equipment can operate stably in an environment with a pH value of 1-14; in the field of food and medicine, the equipment is made of 316L stainless steel, which meets FDA hygiene standards and avoids medium contamination; in high-temperature heating scenarios (such as asphalt melting), the surface load of the heating element can be designed to be 20-30W/cm², and with high-temperature resistant magnesium oxide powder filling, the long-term working temperature of the equipment can reach above 600℃.
Efficiency and safety double guarantee: How does intelligent temperature control eliminate the risk of overheating?
In the industrial heating process, overheating will not only cause medium denaturation and equipment damage, but may also cause safety accidents. The immersion flange heater achieves a balance between efficiency and safety through multiple safety protections and intelligent temperature control systems.
The equipment usually has a built-in temperature sensor (PT100 or K-type thermocouple) to monitor the medium temperature in real time and achieve accurate temperature control of ±1℃ with a PID thermostat. When the temperature exceeds the set threshold, the overheating protection device will immediately cut off the power supply; if the heating tube is dry-burned, the built-in thermal fuse will permanently disconnect the circuit to prevent the equipment from burning. In explosion-proof scenarios, the equipment can also be equipped with a flameproof junction box to meet ATEX or IECEx explosion-proof standards, suitable for flammable and explosive environments such as oil and natural gas.
This "active defense + precise control" design makes the failure rate of the immersion flange heater much lower than that of traditional heating equipment.
Installation and maintenance guide: key details to extend the life of the equipment
Although the immersion flange heater is easy to operate, scientific installation and maintenance are still the prerequisite for its performance. During installation, ensure that the sealing surface of the flange and the container is flat and clean, select suitable sealing gaskets (such as nitrile rubber for oil media, fluororubber for high temperature scenarios), and tighten the flange bolts evenly to avoid medium leakage. The heating element should be fully immersed in the medium and keep a distance of more than 50mm from the container wall to prevent local overheating.
During routine maintenance, it is necessary to regularly check whether the surface of the heating tube is scaled or corroded: scale will increase thermal resistance and reduce heating efficiency by more than 30%. Citric acid solution can be used for regular cleaning; if cracks or bulges are found on the surface of the heating tube, the components must be replaced in time to avoid the risk of leakage. The junction box needs to be kept dry and dust should be cleaned regularly to prevent short circuit failures. Following these details, the service life of the equipment can be extended to 5-8 years, which is much higher than the industry average.
From small and medium-sized laboratories to large chemical plants, immersion flange heaters are reshaping the efficiency standards of industrial heating with their irreplaceable advantages. Choosing suitable models and standardizing installation and maintenance can not only ensure stable production, but also open up new space for enterprises to reduce costs and increase efficiency at a time when energy costs are rising.
