Cartridge Heater Element: High-efficiency Heating Element

In modern industrial production and equipment manufacturing, heating elements play a vital role. As a widely used heating solution, Cartridge Heater Element has become the first choice in many fields due to its compact structure, high heating efficiency and easy installation.

What is Cartridge Heater Element?

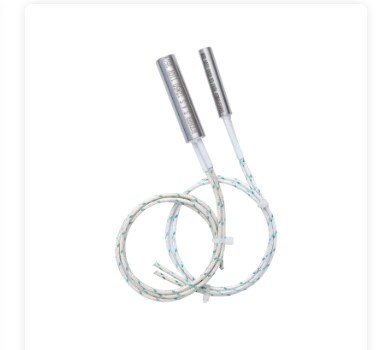

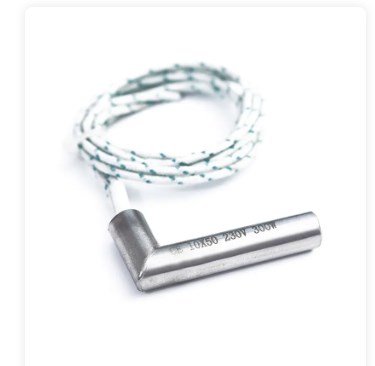

Cartridge Heater Element is a cylindrical electric heating element, which usually uses high-performance nickel-chromium alloy resistance wire as the heating element inside, and the outer shell is mostly made of stainless steel or copper. The original design intention is to tightly encapsulate the heating element in a metal tube with a small diameter and customizable length, so as to achieve efficient and uniform local heating.

This heating element is usually inserted into the hole in the equipment for heating, so it is named "cardboard", which vividly reflects its convenience and adaptability of installation.

Structure and material analysis of Cartridge Heater Element
The core of Cartridge Heater Element is resistance wire, usually nickel-chromium alloy (such as NiCr80/20) is selected because of its excellent heat resistance and stable resistance characteristics. The resistance wire is precisely wrapped in an insulating medium (usually high-purity magnesium oxide powder), which not only has good electrical insulation, but also can effectively conduct heat to ensure uniform temperature of the heating element.

The shell material is mostly stainless steel, which has good corrosion resistance and mechanical strength, suitable for a variety of industrial environments. For special needs, copper shells can also be used to improve heat conduction efficiency, or surface nickel plating can be performed to extend service life.

Working principle: The secret of efficient heat transfer
The working principle of Cartridge Heater Element is based on resistance heating. When current passes through the internal resistance wire, the resistance wire heats up due to the resistance effect, and the heat is transferred to the external device through the magnesium oxide powder and the metal shell. Due to its compact structure, the heat transfer path is short and dense, so the heating efficiency is extremely high.

The heating tube achieves rapid heating and temperature control by closely contacting the heating object. At the same time, good insulation materials ensure electrical safety and stable operation of the element.

Wide application fields
Cartridge Heater Element is widely used in plastic processing (injection molding machine, extruder), packaging machinery, food processing equipment, laboratory instruments, heat sealing equipment and semiconductor manufacturing due to its various specifications and excellent performance.

In the injection molding industry, the uniform heating of the heating tube can ensure the stability of the mold temperature and improve the product quality. In laboratory equipment, it is also widely used due to its precise temperature control and fast response.

Purchase and use precautions
To choose a suitable Cartridge Heater Element, you need to consider the power density, working voltage, size specifications and installation environment. Too high power density may cause the heating tube to overheat and shorten its life; insufficient power will affect the heating efficiency.

During installation, ensure that the heating tube and the heating aperture are closely matched to avoid thermal resistance caused by air gaps. At the same time, the temperature control system should be reasonably designed to avoid damage to the components caused by overheating and thermal shock.

Regularly checking the connecting cables and sealing parts will help extend the service life.

As an efficient and reliable electric heating element, Cartridge Heater Element occupies an important position in the field of industrial heating with its compact structure, uniform heating and convenient installation. A deep understanding of its materials, structure and working principle, as well as reasonable selection and maintenance based on specific application requirements, is the key to ensuring efficient operation of the equipment and extending its service life.

If you are looking for a heating solution with excellent performance and a wide range of applications, Cartridge Heater Element is undoubtedly an important choice worthy of attention.
