In modern industrial heat treatment systems, Stainless Band Heater, as an important member of heating elements, plays an indispensable role in many fields such as plastic processing, chemical equipment, and food machinery with its durability, efficient heat transfer capacity and wide applicability.
1. What is Stainless Band Heater?

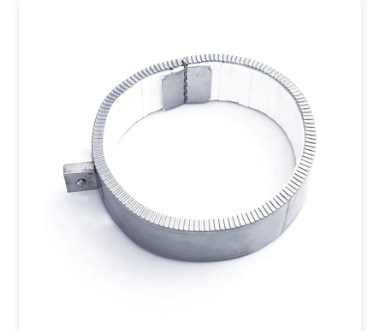

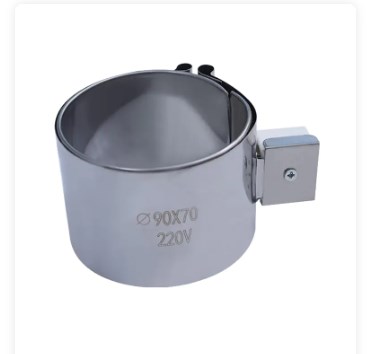

Stainless Band Heater is an electric heating device that generates heat through electric heating wire, is covered with a stainless steel sheath, and achieves heating through heat conduction. Its shape is mostly annular or semi-annular, and is used to cover the surface of cylindrical equipment to be heated, such as the barrel of an injection molding machine, the heating barrel of an extruder, etc.
Its core structure mainly includes:
Resistance wire: commonly used nickel-chromium resistance wire or iron-chromium-aluminum resistance band, providing heat source;
Insulation material: mica board, ceramic block, etc. are mostly used as internal insulation structure;
Stainless steel sheath: plays the role of fixing, protection and corrosion protection;
Fasteners: such as bolts, spring buckles, etc., to ensure close fit with the equipment.
2. Working Principle of Stainless Band Heater
The basic principle of stainless steel band heater is resistance heating. When current passes through the heating wire, electrical energy is converted into heat energy, and the heat is transferred to the outer shell through the inner insulating material, and further transferred to the heated object through contact.
Its heat transfer path is:
Heating wire → insulation layer → stainless steel shell → heated object surface
This structure can not only achieve rapid heating, but also significantly improve the thermal efficiency because the heater fits closely with the target surface.
3. Technical advantages: Why choose Stainless Band Heater?
1. Efficient heat transfer, energy saving and consumption reduction
Stainless steel band heater can achieve local precision heating, heat concentration, high heat transfer efficiency, and reduce energy consumption.
2. Corrosion resistance and long life
The stainless steel shell has strong corrosion resistance and is suitable for harsh industrial environments such as humidity, high temperature, and corrosive gases.
3. Easy installation and simple maintenance
Its structure is compact, with various fixing methods (bolts, clamps, springs), easy installation and replacement, and low maintenance cost.
4. Strong customization
Different sizes, voltages, currents and thermal powers can be customized according to equipment requirements to achieve a perfect match with the equipment.
IV. Wide range of application scenarios
Stainless Band Heater is widely used in many industries due to its excellent performance. Typical fields include:
Plastic industry: Heating of barrels of injection molding machines, extruders, film blowing machines, pellet machines and other equipment;
Chemical equipment: Heating and heat preservation of reactors, storage tanks, and distillation towers;
Food industry: Local heating in packaging machinery and heat sealing machines;
Pharmaceutical industry: Temperature control components of pharmaceutical machinery and experimental equipment;
3D printing equipment: Constant temperature control of nozzles and heating base plates.
V. How to choose a stainless steel band heater?
The following key parameters should be paid attention to when purchasing:
1. Size and structure
Ensure that the size of the heated part is accurately matched, and select the appropriate inner diameter, width and structural style (integral or open).
2. Power and voltage
Choose appropriate voltage (commonly 220V, 380V) and power (W/cm²) configuration according to heating requirements to avoid slow heating or heat overload.
3. Insulation material
Ceramic core heaters are recommended for high temperatures, and mica structures can be selected for conventional use.
4. Surface temperature control
If precise temperature control is required, thermocouples, thermistors or external thermostats can be selected.
5. Durability design
Choose models with waterproof and explosion-proof functions to adapt to special industrial environments.
As one of the core components in industrial heat treatment systems, Stainless Band Heater not only solves the problems of low efficiency and short life of traditional heating methods, but also becomes the standard of modern industrial equipment with its high stability and high adaptability. In the context of industrial upgrading and intelligent manufacturing, its development potential is immeasurable and deserves extensive attention and in-depth application in various industries.
