Immersion Flange Heaters—The Core of Efficient Industrial Heating Solutions

In modern industrial heating systems, immersion flange heaters have become an indispensable component in many liquid heating and energy storage systems. With their efficient heat transfer, stable operation, and flexible installation options, they are widely used in industries such as chemical, petroleum, food, energy, power, and water treatment. As industrial equipment evolves toward intelligent and efficient systems, immersion flange heaters are gaining increasing prominence in industrial thermal control.

I. Structure and Operating Principle of Immersion Flange Heaters

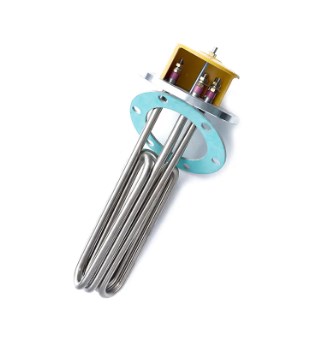

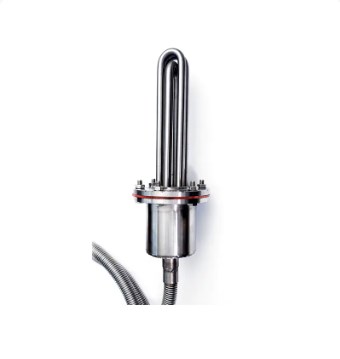

Immersion flange heaters are devices that heat a liquid or gas by directly immersing an electric heating element. They typically consist of an electric heating element, a metal flange, a junction box, and a temperature control system. The heating element is fixed to the container wall via a flange, ensuring full contact with the liquid or gas. When current passes through the heating element, electrical energy is rapidly converted into heat and directly transferred to the medium, achieving efficient temperature increase.

The core of an immersion flange heater's design is the electric heating element, often constructed from highly corrosion-resistant materials such as stainless steel, carbon steel, or nickel alloy, ensuring long-term, stable operation in high-temperature, high-pressure, or highly corrosive environments. Furthermore, the flange connection structure ensures a more stable installation and a stronger seal, effectively preventing leaks. Depending on the heating medium, designers also optimize flange size, heating power, and piping layout to achieve more uniform heat distribution.

II. Efficient Heating Performance and Energy-Saving Design
A major advantage of immersion flange heaters is their exceptional thermal efficiency. Because the heating element is in direct contact with the medium, energy loss is minimal, achieving near-100% thermal energy utilization. Compared to traditional indirect heating systems, this direct heat transfer method significantly reduces heat-up time and energy consumption.

As for energy-saving design, modern immersion flange heaters are commonly equipped with intelligent temperature control systems that automatically adjust heating power based on medium temperature fluctuations to maintain a stable thermal environment. Some units also incorporate heat recovery mechanisms, optimizing current distribution and control circuits for more precise energy management. For industrial applications requiring long-term continuous operation, this highly efficient and energy-saving design not only significantly reduces operating costs but also extends equipment life.

III. Professional Advantages in Materials and Manufacturing Processes
The selection of materials for immersion flange heaters is extremely stringent, as different operating conditions require varying levels of temperature resistance, corrosion resistance, and mechanical strength. Common heating tube materials include stainless steel, titanium alloy, and copper-nickel alloy. Stainless steel is widely used due to its strong corrosion resistance and excellent thermal conductivity. In specialized industries, such as the chemical industry or seawater treatment, manufacturers also select specialty alloys with even higher corrosion resistance to prevent damage to the heating element from chemicals in the medium.

High-quality immersion flange heaters typically utilize high-precision welding and integrated packaging techniques to ensure a secure, leak-free connection between the heating element and the flange. The heating tube is filled with a highly thermally conductive insulating material, which not only improves heat transfer efficiency but also effectively prevents arcing and oxidation. After manufacturing, the equipment undergoes rigorous pressure testing, insulation testing, and sealing tests to ensure safe operation under various complex operating conditions.

IV. Applications of Immersed Flange Heaters
Due to their reliable heating performance and wide adaptability, immersed flange heaters can meet virtually all industrial liquid heating needs. In the chemical industry, they are used to heat solvents, acids, alkalis, or reaction fluids to ensure stable temperatures during production. In the oil and gas sector, they can be used to heat and freeze storage tanks, pipelines, and oil products, preventing the medium from solidifying due to low temperatures. In the food and pharmaceutical industries, flange heaters are used to heat media such as water, oil, and cleaning fluids to ensure the hygiene and safety of production equipment.

V. Integration of Safety and Intelligent Control Technologies
Safety is a core consideration in the design of immersed flange heaters. To prevent safety hazards such as overheating, short circuits, and leaks, modern equipment is generally equipped with multiple protection mechanisms, including temperature limits, leakage protection, automatic power off, and fault alarm systems. These safety features enable stable operation in extreme environments, reducing human intervention.

In terms of intelligence, with the advancement of industrial automation, immersed flange heaters are being integrated with digital control systems. Using temperature sensors, PLC controllers, and remote monitoring modules, operators can implement real-time temperature monitoring, power adjustment, and energy consumption analysis. This intelligent control not only improves operational convenience but also significantly enhances energy management efficiency, making heating systems more precise and sustainable.

With its efficient, stable, and safe performance, the Immersion Flange Heater has become an indispensable key device in the modern industrial heating industry. It not only excels in energy saving and control precision, but also demonstrates broad potential for intelligent development, customization, and system integration.
