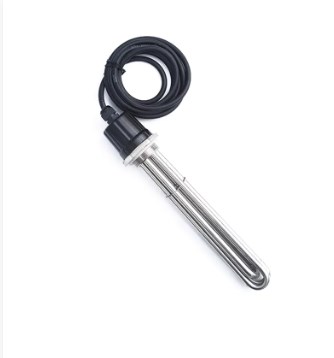

Immersion Flange Heaters: The Core Power of Industrial Temperature Control

With their efficient and stable heating performance, immersion flange heaters have become essential components in many industrial temperature control systems. From preheating media in chemical reactors to constant temperature control in food processing, from heating fluids in energy extraction to precision temperature control in the pharmaceutical industry, these heaters, with their unique structural design and technical features, continue to provide a core driving force for efficient industrial operations.

Core Construction: Industrial Design Combining Precision and Durability

The structural design of an immersion flange heater is the foundation of its efficient heating. The selection and combination of each component are carefully considered based on rigorous industrial logic. Its core consists of a heating element, a flange connection, and a temperature control assembly. The synergy of these three components determines the overall performance of the device.

As the core of energy conversion, the heating element is typically made of a high-resistance alloy. This material not only withstands continuous operation in high-temperature environments but also achieves stable power output through precise resistance control. The design of the component geometry must be optimized based on the characteristics of the heating medium. For example, for viscous liquids, spiral or U-shaped structures are often used to increase the heat exchange area. For scaling-prone media, a straight tube design with a smooth surface is preferred to reduce impurity adhesion.

The flange connection is crucial for sealing the heater to the container. Its specifications must fully match the equipment interface to ensure leakage prevention in high-pressure, high-temperature environments. The material selection of the flange is also crucial. Stainless steel is commonly used in general industrial applications, while highly corrosive environments require specialized materials such as titanium alloy or Hastelloy to ensure long-term stable operation.

The temperature control component provides the heater with intelligent regulation capabilities. Through its built-in temperature sensor and control system, it monitors the medium temperature in real time and dynamically adjusts the heating power to avoid overheating or underheating. Modern flanged immersion heaters are also often equipped with remote communication capabilities, enabling integration with industrial control systems to achieve automated temperature control throughout the entire production process.

Technical Advantages: Dual Guarantees of Efficiency and Safety
The importance of flange-immersion heaters among heating equipment stems from their unique technological advantages. These advantages extend beyond heating efficiency to encompass safety and adaptability.

High heat transfer efficiency is one of their most significant advantages. Because the heating element is directly immersed in the heated medium, heat is transferred via the shortest possible path, reducing heat loss through the container wall associated with traditional heating methods. This direct heating method significantly improves thermal efficiency, enabling faster reaching of the set temperature while significantly reducing energy consumption and delivering significant cost savings for industrial production.

In terms of safety, flange-immersion heaters utilize multiple design features to ensure stable and reliable operation. For example, they are typically equipped with an overheating protection device that automatically shuts off power when the element temperature exceeds a safe threshold, preventing fire or equipment damage caused by overheating. Furthermore, the tightness of the flange connection effectively prevents leakage, minimizing the risk of combustion or explosion from contact with high-temperature elements.

Their robust adaptability is also a significant advantage. Whether it's a liquid medium like water, oil, or a solution, or some semi-solid medium in a flowing state, immersion flange heaters can be tailored to the medium's characteristics to meet diverse heating requirements. Furthermore, the equipment can adapt to varying operating pressures and temperature ranges, maintaining stable performance in a variety of demanding industrial environments.

Key to Selection: Scientific Consideration of Requirements

Choosing the right immersion flange heater isn't a simple comparison of parameters; it requires a comprehensive consideration of all production requirements and a rational, scientific approach. Only by ensuring the equipment is perfectly matched to the actual operating conditions can its full performance advantages be fully realized, avoiding inefficiencies or equipment damage caused by improper selection.

Media characteristics are the primary consideration when selecting a heater. Different media have varying physical and chemical properties, such as viscosity, corrosivity, and flammability. These properties directly influence the material selection and structural design of the heating element. For example, for highly corrosive media, corrosion-resistant special alloys must be used for the heating element and flange. For highly viscous media, the surface area of the heating element must be increased to improve heat transfer efficiency while preventing fouling. Determining the heating power is also a key step in heater selection. Excessive power may cause localized overheating of the medium, impacting product quality and even causing safety issues. Excessive power may fail to meet heating speed and temperature requirements, reducing production efficiency. When calculating the required power, factors such as the medium's initial and final temperatures, mass, specific heat capacity, and heating time must be comprehensively considered. An accurate heat balance calculation should be used to determine the appropriate power value.

Operating environment parameters are also crucial. Factors such as operating pressure, ambient temperature, and space dimensions all influence heater selection. For example, for heaters operating in high-pressure environments, the flange's pressure rating must meet relevant standards. When installing within confined equipment, the heater's size and mounting method must be considered to ensure smooth installation without affecting the normal operation of other components.

As a key component in the industrial temperature control field, flanged immersion heaters are undergoing continuous performance improvements and technological innovation, providing a solid foundation for improving production efficiency and ensuring quality assurance across various industries. They will continue to play a vital role in future industrial development and become a key force in driving the intelligent and green industrial landscape.
