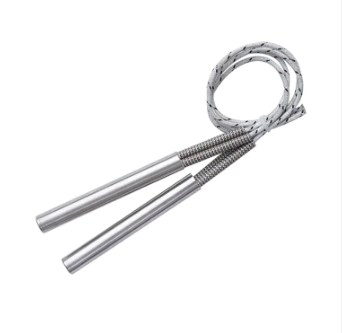

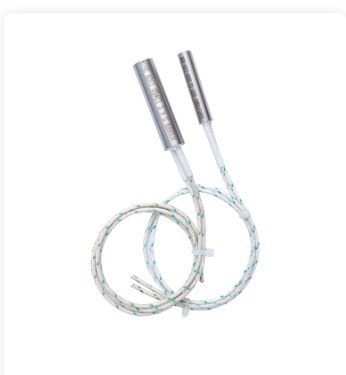

Cartridge Heater Heating Element: The Hidden Core of Industrial Heating

Heating technology plays an indispensable role in many aspects of modern industrial production. Among various heating elements, the cartridge heater heating element, with its unique design and efficient performance, has become a key component in many precision heating scenarios. Despite its seemingly simple structure, it delivers stable heat even in harsh environments. From mechanical manufacturing to plastics processing, from medical equipment to food production, it is used in a wide range of fields requiring precise temperature control, silently supporting the efficient operation of industrial production.

The Secret of the Cartridge Heating Element's Structure

The core advantage of the cartridge heater heating element lies primarily in its sophisticated structural design. It utilizes a metal casing as its base frame, tightly packed with magnesium oxide powder, which boasts high insulation and thermal conductivity. The resistance wire, the heating core, is precisely embedded within this casing, forming a sealed and robust structure. This structure not only allows for rapid heat transfer from the resistance wire to the casing surface, but also effectively isolates the current from the external environment, ensuring safety during use.

The material choice of the metal casing is a key factor influencing its performance. Depending on the operating environment, materials such as stainless steel and nickel alloys can be used. These materials not only offer excellent high-temperature resistance but also resist corrosion from corrosive media, extending the lifespan of the element. The packing density and uniformity of the magnesium oxide powder are directly related to the efficiency of heat transfer. A high-quality packing process prevents localized overheating and ensures more uniform temperature distribution.

The design of the resistance wire also holds hidden secrets. Its material and winding method are customized according to the required power and temperature range, ensuring resistance to breakage under prolonged high-load operation while maintaining a stable resistance value, providing the basis for precise temperature control. This integrated structural design allows the cartridge heater heating element to function in confined spaces and can be easily embedded within molds, pipelines, and other equipment to achieve localized heating.

Performance Advantages Empowered by Materials Technology

In addition to structural design, advances in materials technology have also provided strong support for the performance improvements of cartridge heater heating elements. The choice of resistance wire material is particularly important. Common nickel-chromium alloys offer high resistivity and excellent oxidation resistance, maintaining stable heating performance at high temperatures. Iron-chromium-aluminum alloys offer advantages in cost and high-temperature resistance, making them suitable for specific industrial applications. The material properties of the metal sleeve directly impact the durability and thermal conductivity of the component. Stainless steel sleeves offer excellent corrosion resistance and mechanical strength, making them suitable for humid or chemically corrosive environments. Copper sleeves, on the other hand, have higher thermal conductivity, enabling faster heat transfer and are ideal for applications requiring faster heating speeds. Surface treatments such as electroplating or spray coating can further enhance their wear and corrosion resistance.

As an insulating and thermally conductive medium, the purity and particle size of magnesium oxide powder are crucial to component performance. High-purity magnesium oxide powder provides improved insulation and prevents electrical leakage, while a well-defined particle size distribution ensures tight packing, reduces thermal resistance, and improves heat transfer efficiency. The synergistic effect of these materials enables cartridge heater heating elements to operate stably in a variety of complex industrial environments.

Wide Range of Industrial Applications
Due to their excellent performance, cartridge heater heating elements have found widespread application in numerous industrial fields. In the machinery manufacturing industry, they are often used for mold heating. By being embedded within the mold, they can quickly heat the mold to the desired temperature, ensuring consistent product quality. Its precise temperature control capability prevents product defects caused by temperature fluctuations and improves production efficiency.

The plastics processing industry is also a key application area. In injection molding machines, extruders, and other equipment, cartridge heater heating elements are used to heat the barrel, ensuring uniform melting of the plastic raw material and smooth processing. Due to the high temperature sensitivity of plastic processing, stable heating and uniform temperature control are particularly important, effectively improving product quality and consistency.

Cartridge heater heating elements also play a vital role in the medical device sector. Some medical instruments require sterilization or heating at specific temperatures. Their compact design and precise temperature control capabilities enable them to meet the stringent space and performance requirements of medical equipment, ensuring safe and reliable medical procedures.

Cartridge heater heating elements also have indispensable applications in industries such as food processing, packaging machinery, and automotive manufacturing. Their emergence provides efficient and reliable solutions for heating needs across various industries, promoting the automation and refinement of industrial production.

As a vital component of industrial heating, the cartridge heater heating element, with its sophisticated structural design, advanced materials technology, and wide range of applications, demonstrates its crucial role in modern industrial production. With continuous technological innovation, it is poised to play a greater role in even more areas, injecting new impetus into industrial development.
