Heating core technology revealed: Heating Coil full analysis

In modern industry and life, Heating Coil plays a vital role. It is not only the "heart" of electric heating equipment, but also an indispensable heating component in air conditioners, water heaters, drying equipment, industrial furnaces, electronic cigarettes and other products.

What is Heating Coil? ——The "key intermediary" for converting electrical energy to thermal energy
Heating Coil, called "heating coil" or "heating resistance wire" in Chinese, is essentially a resistance element that generates heat energy through the flow of current. Its working principle is based on Joule's Law, that is, when current passes through a conductor, heat is generated due to resistance, and the amount of heat is proportional to the square of the current, the resistance value and the time.

Common heating coils are usually made of materials with high resistivity, high melting point and good oxidation resistance (such as nickel-chromium alloy, iron-chromium-aluminum alloy), and are wound into spiral, wave-shaped or flat structures according to different uses.

Mainstream material and structure classification
Different application scenarios have different performance requirements for Heating Coil, so the heating coil also presents a variety of material and structure combinations:

1. Nickel-chromium alloy (NiCr) heating coil
Features: high resistivity, corrosion resistance, oxidation resistance, and long life.

Application: Suitable for high-temperature electric furnaces, electric hair dryers, ovens, etc.

2. Iron-chromium-aluminum alloy (FeCrAl) heating coil
Features: low cost, high temperature resistance (up to 1400°C), and high strength.

Application: Commonly used in high-temperature occasions such as industrial furnaces and heat treatment equipment.

3. Stainless steel heating coil
Features: low resistance and fast heating speed, but the high temperature resistance is not as good as the previous two.

Application: Suitable for home appliances such as electric kettles and heating tubes that do not require high temperature control.

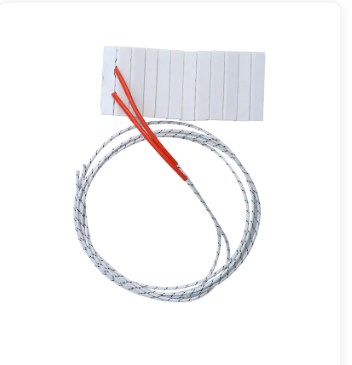

4. Ceramic coated heating coil

Features: good insulation and high safety.

Application: Used in scenarios that require insulation protection, such as hot air guns, medical heaters, etc.

Application in multiple fields, why is Heating Coil irreplaceable?
Heating coils are widely used in multiple industries and are the core components of many devices to achieve heating functions.

Home appliances
Electric kettles, electric cups, electric ovens, electric irons, etc. all use heating coils to achieve rapid heating.

Heating Coil has a compact structure and is easy to design and embed into various devices.

Industrial heating
Industrial electric furnaces, injection molding machine temperature controllers, drying boxes, etc. provide high-temperature heat sources through heating coils to meet the high-temperature environment requirements of industrial manufacturing.

Heating Coil can accurately control temperature and improve product quality and process consistency.

HVAC system
In air heaters and air conditioner electric auxiliary heating devices, Heating Coil is used to compensate for insufficient heat.

Especially suitable for auxiliary heating in low temperature environments.

Tobacco and new electronic products
For example, the atomizer heating wire in electronic cigarettes is a special type of small Heating Coil, which heats liquid into gas to achieve smoke simulation.

Technology Trends: Intelligent, Efficient, and Sustainable
With the development of energy-saving and emission-reduction policies and intelligent technologies, the design of heating coils has also evolved:

● Energy-saving
The addition of new materials such as nano-ceramics and rare earth alloys has enabled Heating Coil to have higher thermal efficiency and lower energy consumption, especially for new energy equipment and portable heaters.

● Intelligent Control
Combined with temperature control chips and IoT technology, Heating Coil can realize functions such as real-time temperature monitoring, overheating protection, and remote control, significantly improving safety and convenience.

● Environmentally friendly and recyclable
In recent years, the use of environmentally friendly materials has gradually become popular, especially in the European and American markets, where high-performance and recyclable heating coils are more popular.

Whether it is high-temperature equipment on industrial production lines or electric kettles in our daily lives, Heating Coil has become an indispensable part of modern heating technology with its high efficiency, reliability, and flexibility. With the continuous advancement of new materials and intelligent manufacturing, heating coils are also evolving towards a safer, more energy-saving, and more intelligent direction, giving greater imagination space for "thermal energy conversion."
